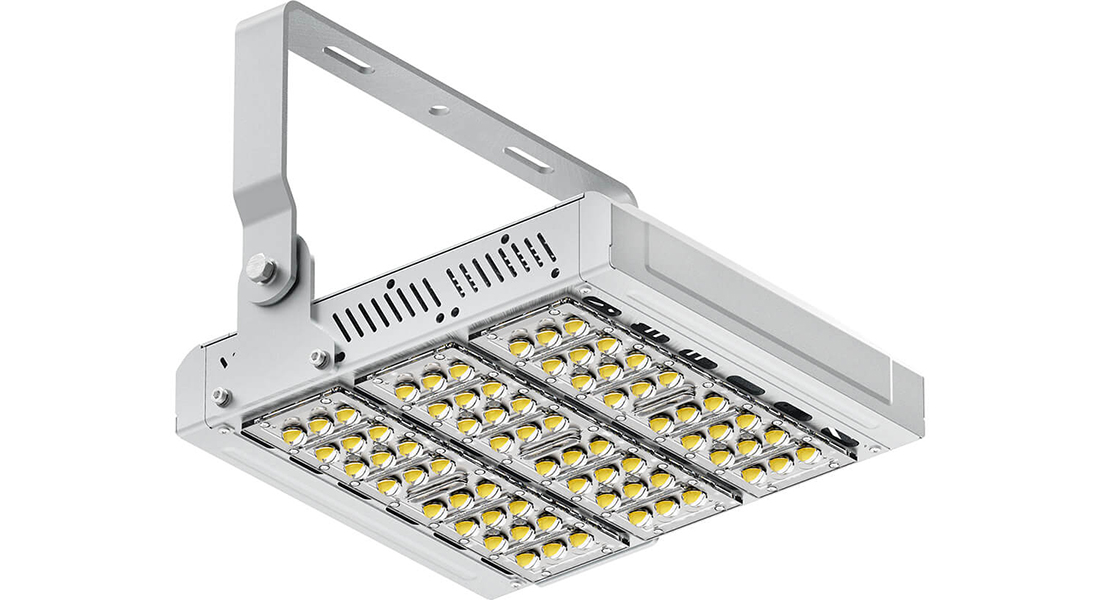

LED Tunnel Lighting is perfect for underground tunnels, logistics, plazas, warehouses, stadiums, and other outdoor spaces. It is the ideal alternative to high-pressure sodium, high-pressure mercury, and metal halide lamps. It is specifically designed to improve the visibility of drivers in situations such as long tunnels thus aiding in accident avoidance and driver alertness. Maintenance is at a minimum because it is created to have a long lifespan.

LED Tunnel Lighting can have a variety of beam angles, can easily be CE- and RoHs-certified, and can have an IP65 rating. The material is comprised of PC lens and 6063 aluminum alloy.

Features

  • CE, RoHs certified
  • IP65
  • Material: PC Lens + 6063 AL
  • Variety of beam angle: 15°, 25°, 45°, 60°, 90 °
  • Up to 105 lm/w
  • 3000K, 4000K, 5000K, 5700K
  • 5-year warranty

Datasheet

Item Dimension Power Luminous Flux
NST-80W 360 x 380 x 190 mm 80 W 8000-9000 lm
NST-120W 420 x 380 x 190 mm 120 W 12000-13000 lm
NST-160W 520 x 390 x 220 mm 160 W 16000-18000 lm
NST-240W 680 x 380 x 240 mm 240 W 24000-260000 lm
